IPL Filter & IPL crystal (IPL light guide)
IPL Filter is the key optical element for IPL (intense Pulsed Light) machine, which filter the UV wave and reserve the useful wave from 400nm to 1200nm for cosmetic laser, such as hair removal, vascular and acne treatment.
Dongqiao fabricate all kinds of IPL Filter & Internal Filters, which made by BK7 Glass, Fused silica or sapphire crystal. The available coating wavelengths are 495, 515, 550, 560, 570, 590, 615, 645, 695, 755 and 780 nm.

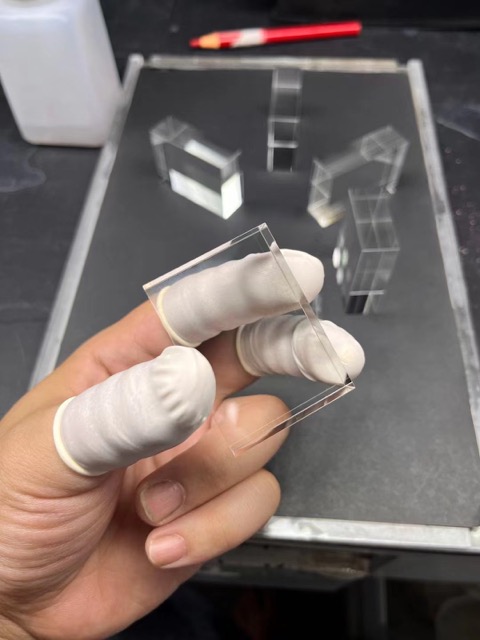

We fabricate the IPL light guide (IPL crystal) with optical grade BK7, fused silica or sapphire crystal. All the 6 surfaces are fine polished to get the high transmission efficiency.
Custom size and wavelength are also available upon request.
IPL Filter Specifications
| Material | N-BK7,Fused silica, quartz,or Sapphire crystal | | Dimension Tolerace | +/-0.1(General), +/-0.01(High Precision) | | Thickness Tolerance | +/-0.2 (General), +/-0.005(High Precision) | | Surface Quality | 60/40 Scratch/Dig | | Clear Aperture | >90% | | Parallelism | <3 arc min. (General) , <5 arc sec.(High Precision) | | Wavefront Distorfion | λ / 2 (General) , λ / 8(High Precision) | | Bevel(face width x45°) | 0.2~0.5mm | | Available wavelength (nm) | 430-1200nm, 450-1200nm,480-1200nm,495~1200nm, 515~1200, 530~1200, 550~1200, 560~1200, 570~1200, 590~1200, 615~1200,645~1200, 695~1200, 755~1200, 780~1200 Custom size and wavelength are available upon request. | |
Available wavelength: 515 to 1200nm, 530 to 1200nm, 550 to 1200nm, 560 to 1200nm,
570 to 1200nm, 590 to 1200nm, 615 to 1200nm, 645 to 1200nm, 695 to 1200nm,
755 to 1200nm, 780 to 1200 nm.
Customize
You can customise this product to your needs, please contact us for custom solution.
Our Related Products
LiTaO3 ingot Sapphire wafers Colored Blue/ Red/ Yellow/ Green/ Sapphire crystal
SiC / GaN/ GaAs/ GaP/ Silicon/ InP / Substrates MgO /GGG/ LaAlO3/ SrTiO3/ crystal
Q:What is your minimum order requirement?
A:MOQ: 10 piece
Q:How long will it take to execute my order ?
A:After confirming the payment.
Q:Can you give warranty of your products ?
A:We promise the quality, if the quality has any problems, we will produce new produces or return you money.
Q:How to pay?
A:T/T, Paypal, West Union, bank transfer and or Assurance payment on Alibaba and etc.
Q:Can you produce custom optics?
A:Yes, we can produce custom optics
Q:If you have any other questions,please do not hesitate to contact me.
A:Tel+:86-15801942596 or skype:wmqeric@sina.cn
Why Choose Us
1.Over 7 years technology and business experience;
2.Having many partners in the domestic and overseas;
3.0R&D at leading level specializing in crystal material field;
4.Having multiple Invention patents and Utility model patents on R&D of Sapphire crystals;
5.We assure you will always be equipped with the latest technology from us;
6.Advanced facilities, fine procedures and responsible staff spell Quality crystal ,material;
7.Large Manufacturing capability assure stable production capacity;
8.As a SAPPHIRE crystal material maker, we are armed with sufficient testing facilities and expertise on quality control of Sapphire optical crystal material. We believe this is our overwhelming superiority Vs other laser crystal material makers.
